High Quality 18AWG White Cable WS2811 Addressable 12mm RGB Dream Color Pixels LED String Light DC12V Input 50PCS/String IP68
- 价格:¥
- 颜色:
- Product description: WS2811 led string
Product introduction
Specifications:
| Product name | WS2811 RGB digital pixel string |
| IC chip |
WS2811 |
| LED Type | F8 RGB Epistar chip |
| LED Qty | 1pcs 8mm round hat 0.3w rgb led |
| Input voltage | DC12V |
| Power Consumption | 0.3W |
|
Color |
RGB full color,24bit,256 gray scale |
| Dimension | 12mm diameter(open hole) |
| Housing | Transparent PVC |
| Wire cable color | White |
| Wire gage | 18AWG |
| Shape | Round |
| Spacing | 7.4cm |
| IP Rank | Waterproof P68 |
| Viewing angle | ≥ 120 degree |
|
Operating Temperature |
-40-60°C |
|
LED life |
>50,000H |
|
Control system |
SPI pixel controller or DMX system |
Notice : Can be available UCS1903 ,WS281,WS2801,DMX512 Pixels LED String Light ,also available single color Red/Green/Blue/White/Yellow/ and RGB led string light led module light
Features:
1.Adpots high quality 8mm 0.3w round hat RGB LED as lighting source.
2. Low wattage, energy efficient and major reduction in power costs
3. Virtually no maintenance
4. Low heat, high brightness, and works well under harsh conditions
5. Input voltage: DC12V, professionally designed to be fully waterproof
6. IP 68 epoxy resin filled, protection degree can be normally operated even in cloudy, rainy and snowy weather
7. Solid-state, high shock or vibration resistant
8. No RF interference
9. Long life 50,000hours
10. 22AWG wire at 7.4cm space apart
11. Environmentally friendly – fully recyclable, no mercury or other hazardous materials
12.using the strong cabe,with good cold resistance ability
13.works with dmx matrix controller,or SPI pixel controll,on-line controller.etc
Application:
1). Lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for paty and contour marking; etc.
2).They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls,various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.

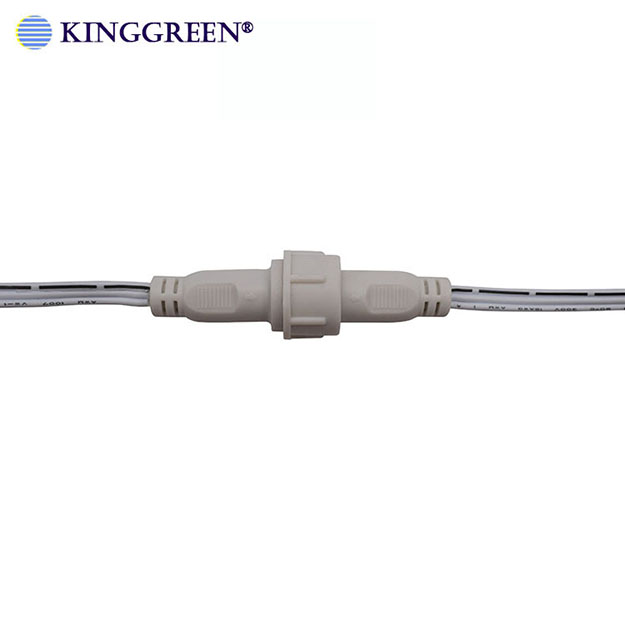

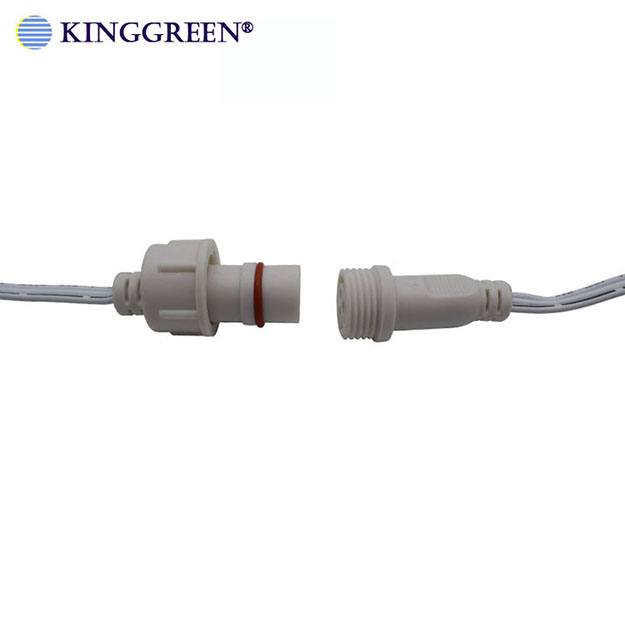

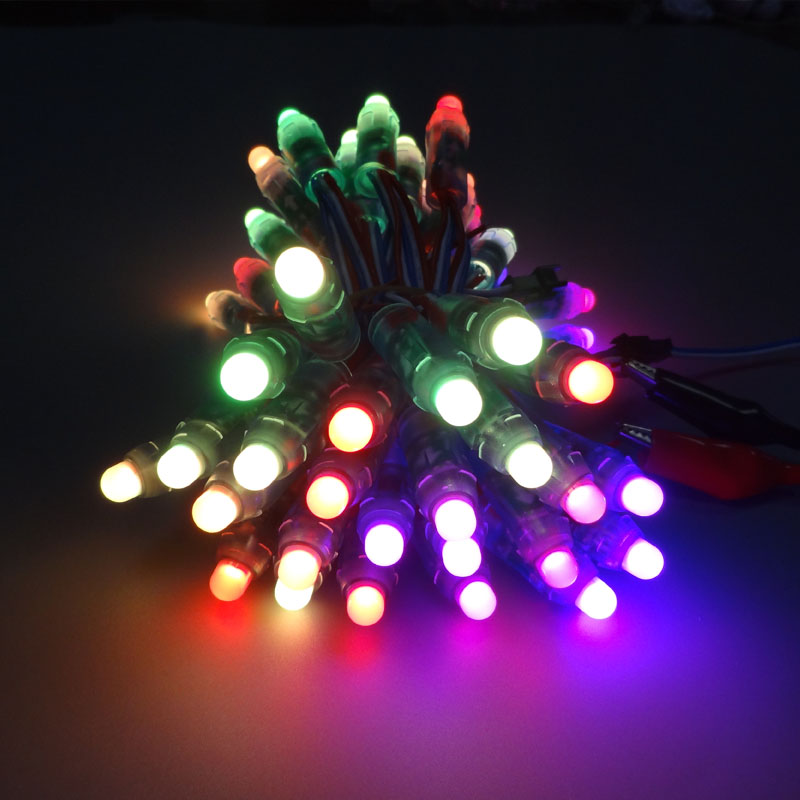

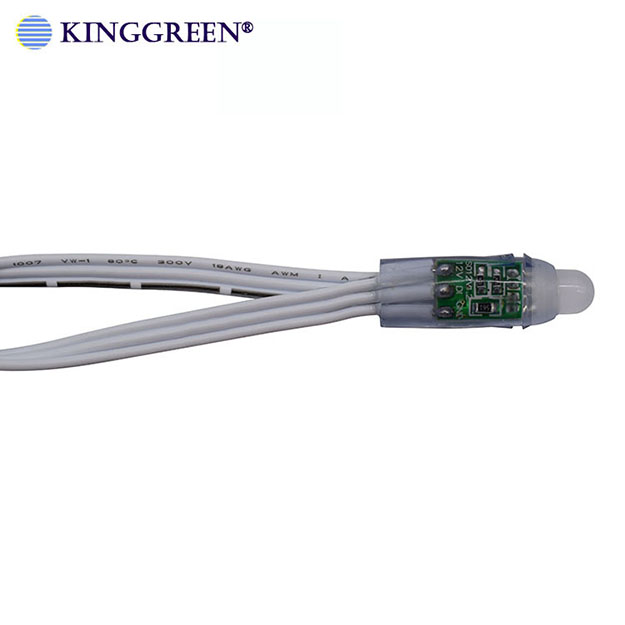

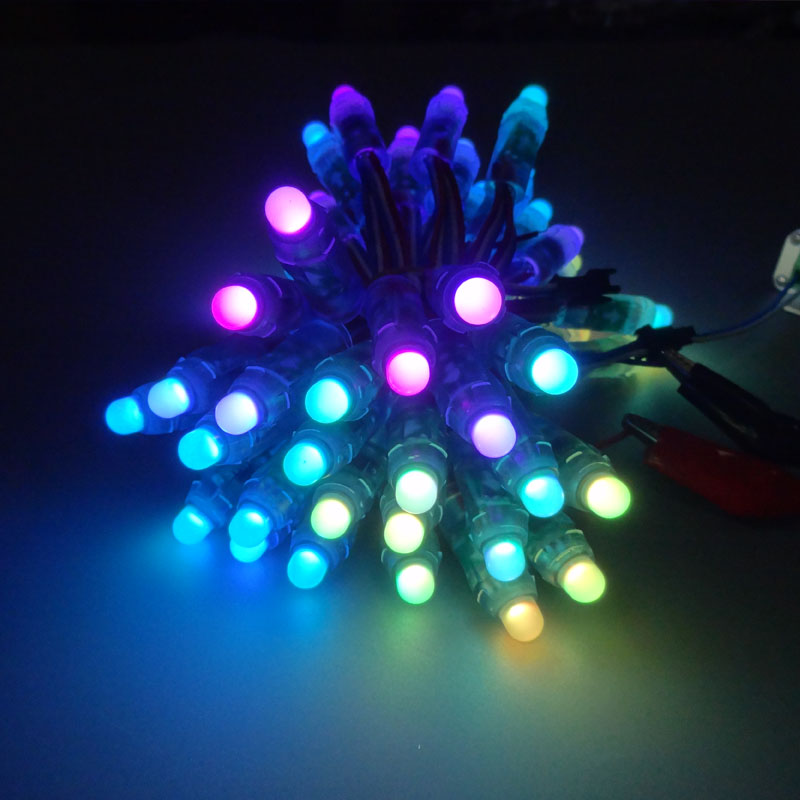

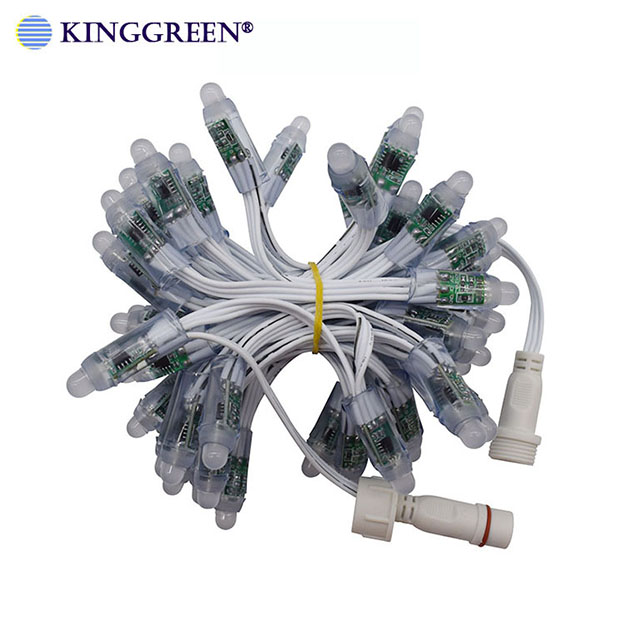

Product picture :
